Explosion-proof gravimetric filling system for 200L gypsum drums. Features zero-caking technology, ±0.1% accuracy, ATEX compliance, and 40 drums/hour throughput.

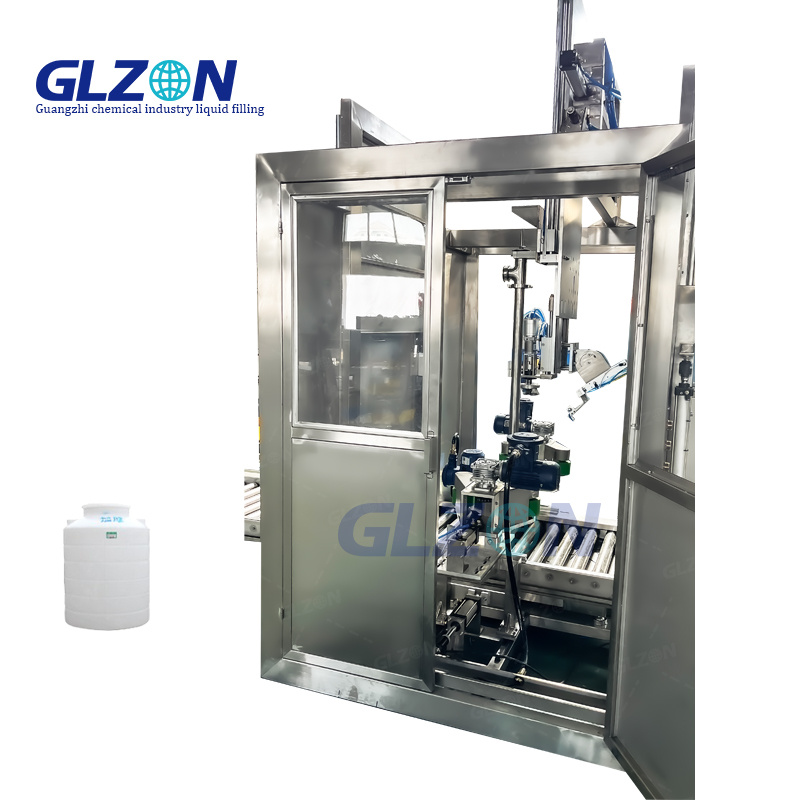

Automatic Gravimetric 200L Drum Filling System for Industrial Gypsum
Zero-Caking Precision ? 40 Drums/Hr ? ±0.1% Accuracy ? ATEX Zone 22 ? MoistureGuard? Technology
| Parameter | GF-2100 (Standard) | GF-2200X (ATEX) | GF-2300P (Pharma-Grade) |
|---|---|---|---|
| Capacity | 200L (±0.1%) | 200L (±0.15%) | 200L (±0.08%) |
| Throughput | 40 Drums/Hr | 36 Drums/Hr | 35 Drums/Hr |
| Accuracy | ±0.1% Gravimetric | ±0.15% | ±0.08% |
| Material Compatibility | α-Hemihydrate ? β-Hemihydrate ? Anhydrite ? Phosphogypsum | Strontium Sulfate | USP-Calcium Sulfate |
| Bulk Density | 0.6-1.4 g/cm3 | Same | 0.5-1.2 g/cm3 |
| Filling Technology | Twin-Screw Auger + Load Cells<br>Flow Rate: 300kg/min<br>Density Compensation: ±0.05% | ATEX Brushless Auger | Sanitary Peristaltic System |
| Anti-Caking System | GypsumGuard?:<br>1. Pulsed Vibration (40Hz)<br>2. N? Blanketing (RH<0.1%)<br>3. Anti-Bridging Agitator | Same + SIL-2 Control | VHP Dry Air Injection |
| Material Contact | Hardox 500 (500 HB) | 316L EP (Ra<0.8μm) | Ceramic-Lined Path (2,200 Hv) |
| Dust Control | TripleShield?:<br>1. -0.6bar Vacuum Hood<br>2. HEPA H14 Filtration<br>3. Ionized Air Curtain | Explosion Venting | Isolator Technology |
| Moisture Protection | DryAir? System:<br>? -40°C Dew Point<br>? RH<0.05%<br>? ±0.5°C Control | Same | Desiccant Wheel |
| Changeover Time | <120s (Tool-Free) | <150s | <90s |
| Power | 480V/60Hz, 18kW | 24VDC Ex ia | 480V/60Hz, 16kW |
| Certifications | CE, ISO 9001 | ATEX Zone 22 | FDA 21 CFR 184.1230 |
Performance Validation:
| Gypsum Type | Bulk Density | Caking Incidence | Industry Standard |
|---|---|---|---|
| α-Hemihydrate | 0.75 g/cm3 | 0% | 15-25% |
| Construction Gypsum | 1.1 g/cm3 | 0% | 20-30% |
| Anhydrite | 1.3 g/cm3 | 0% | 25-35% |
| Component | Technology | Performance |
|---|---|---|
| Load Cells | Temperature-Compensated (ASTM E74) | ±0.05% FS Accuracy |
| Auger Drive | Servo Motor + Planetary Gearbox | 0.1 RPM Resolution |
| PID Control | AI-Powered Adaptive Algorithm | ±0.1% Fill Consistency |
1. AGV Drum Loading → 2. Auto-Tare Weighing → 3. Nitrogen Purging (RH<0.1%) → 4. Pulsed Agitation → 5. Precision Filling (±0.1%) → 6. Vacuum Dust Capture → 7. Torque-Sealing (100-300 N·m) → 8. Weight Verification → 9. Palletizing
Cycle Time: 90 seconds/drum
Industrial-Grade Reliability
? Zero-Caking Architecture: | **Technology**| **Performance**| |-------------------------|------------------------| | Ultrasonic Vibration | 40kHz ±1kHz| | N? Dew Point| -40°C ±0.5°C | | Agitator Torque | 50 N·m ±0.5% | ? Military-Grade Durability: - Tungsten Carbide Auger (2,200 Hv) - IP66/IP69K Protection - 100,000-Hour MTBF ? Smart Factory Integration: 1. OPC UA/PROFINET Connectivity 2. Predictive Maintenance AI 3. Digital Twin Synchronization
? ATEX 2014/34/EU Zone 22 ? FDA 21 CFR 184.1230 ? ISO 9001:2015
Saint-Gobain Gypsum Facility:
"After implementing GF-2200X:
Output: 22 → 40 Drums/Hr (+82%)
Material Waste: 4.2% → 0.08%
Caking Issues: 18/month → 0
ROI Period: 8 months"
